Product
Applications
• Flower beds and pot plants, trees, shrubs etc.
Features
• Wide range of wetted diameters and flow rates such as 35, 70 and 100ℓ/hr
• Light irrigation with fine droplets
• Asembled with bridge, spike, splitter, stick, supporter and tube etc.
• Full- and part-circle patterns : 180º, 360º with 70, 100ℓ/ hr nozzle
• Light irrigation with fine droplets
• Asembled with bridge, spike, splitter, stick, supporter and tube etc.
• Full- and part-circle patterns : 180º, 360º with 70, 100ℓ/ hr nozzle
Table 2. Wetted dia.(m) at 2.0bar and 0.1M above ground level.
| nozzle color |
flow rate at 2bar (ℓ/hr) |
Static spreaders | ||||
|---|---|---|---|---|---|---|
| 180º 24 jets | 360º 18 jets | 360º Mist | ||||
| Flat | Cross range | Flat | Cross range | Flat | ||
| Red | 35 | - | - | - | - | 1.0 |
| Orange | 70 | 2.0 | 1.4 | 1.5 | 0.5 | 1.5 |
| Yellow | 100 | 2.3 | 1.4 | 2.0 | 0.6 | 2.0 |

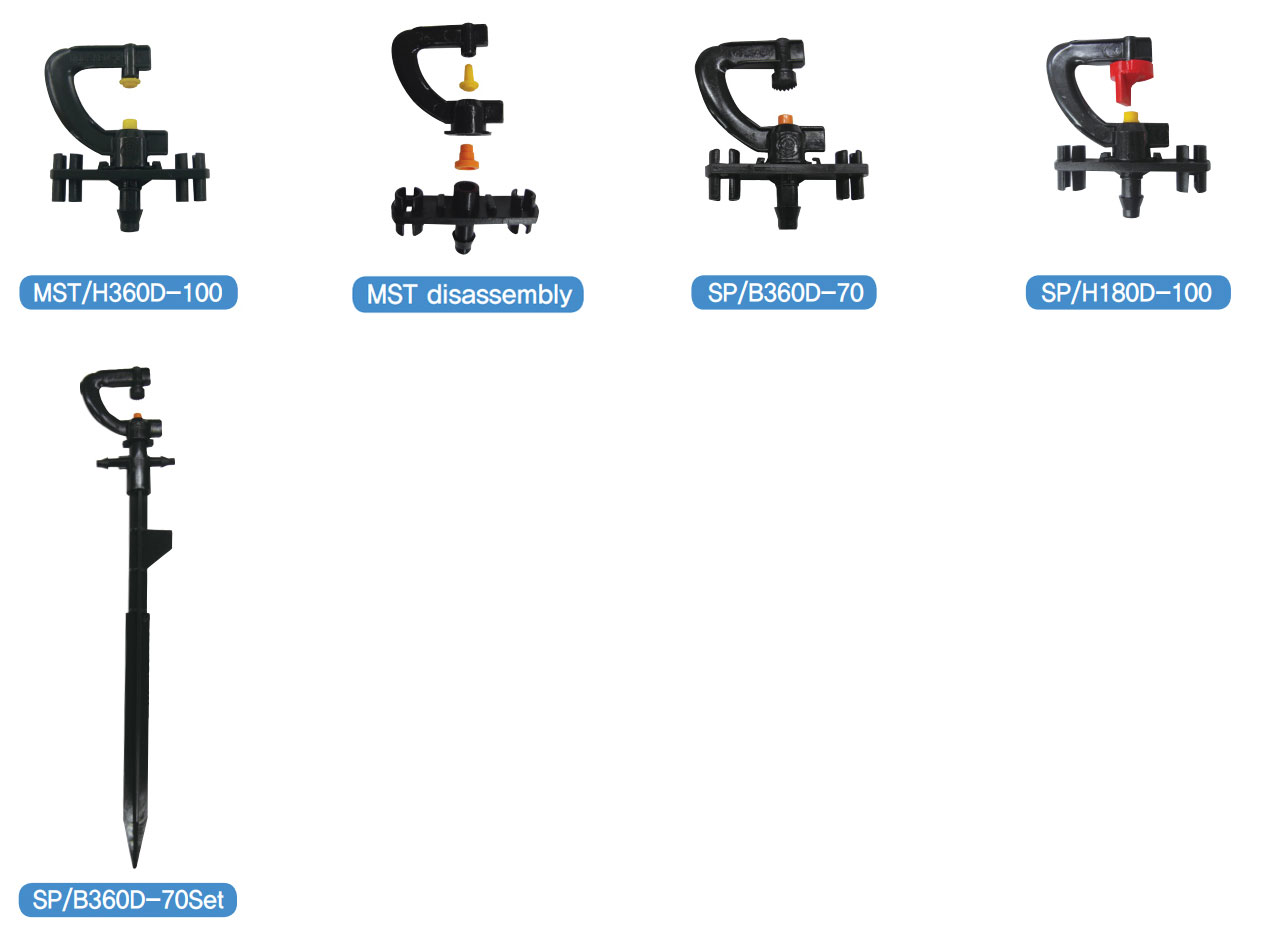

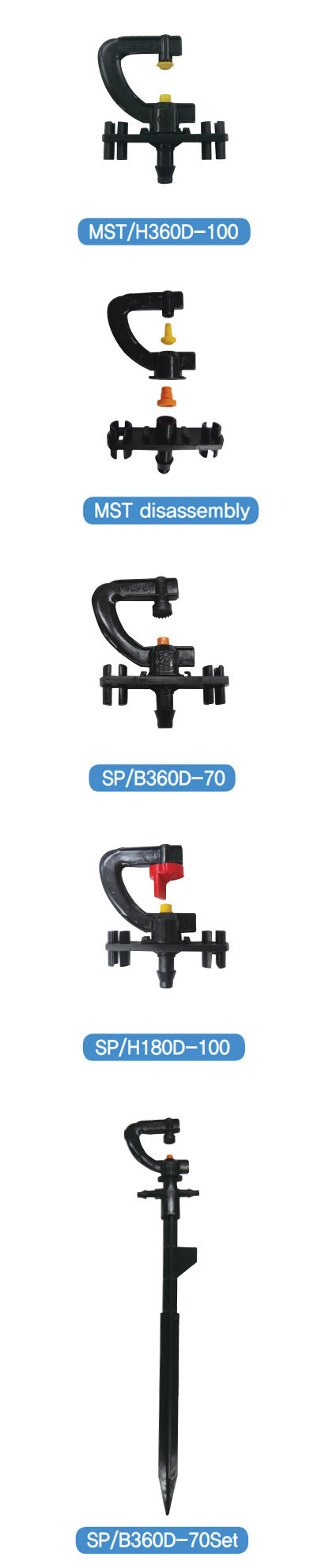

| Picture |  |
 |
 |
 |
 |
|
| Spreading pattern |  |
 |
 |
 |
 |
|
*
Nozzles in the green box are prime products.
Nozzles in the green box are prime products.
